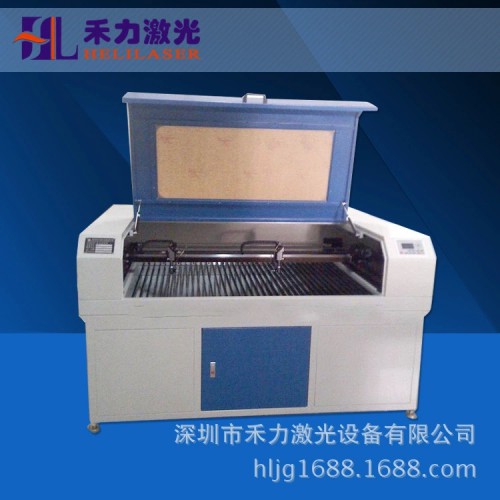

1 、由我公司引进国外先进技术生产出的有机玻璃激光切割雕刻机，集切割，雕刻功能于一体，激光切割机速度快，激光功率强，激光切割机最厚可切割25MM有机玻璃。
By our company to introduce foreign advanced technology to produce the organic glass laser cutting engraving machine, cutting, engraving function in one, laser cutting machine speed, fine carving, accurate positioning. Laser power, laser cutting machine can cut the most thick 25MM organic glass.
2、 激光切割机使用台湾原装导轨，切割准确度0.05mm。激光切割机软件功能强大，切割各种图形结实铝型材龙门架结构，多年不变形。
Laser cutting machine using Taiwan original guide rail, cutting precision 0.05mm. Laser cutting machine software is powerful, cutting a variety of graphics with high precision, fast response. Longmen strong aluminum frame structure, no deformation for many years.
3 、激光切割机使用国内80W稳定激光器系统可每天24小时不间断使用，高能聚焦镜片、优良的金属反光镜片，光能损失少，能量更集中。激光切割机切割速度快：如切割5mm厚度的压克力，切割速度在1.2米/分钟以上。
Laser cutting machine using the domestic 80W stable laser system can be used for 24 hours every day, high energy focus lens, excellent metal reflective lenses, light energy loss less, more concentrated energy. Laser cutting machine cutting speed: such as cutting thickness of 5mm acrylic, cutting speed at 1.2 meters per minute
4、 采用固定工作台，独特的旋转收束激光头设计，可根据需要升降切割头进行调焦。
Uses the fixed working table and unique rotating bandha laser head design, according to the need to lift the cutting head focusing, high precision.
5 、激光切割机独到的设计使系统的运行更加平稳，板材切割面的光泽度达到超乎想象的平滑光整，完全省去了传统的刀刻火抛等烦琐的工序。
Laser cutting machine original design make the system run more smoothly, sheet metal cutting surface gloss reach beyond the imagination of smooth finishing, completely eliminating the need for traditional knife engraved fire throwing and cumbersome process.
6 、可通过电脑随意设计图形,支持几十种文件输出格式，操作简便,性能稳定,切割加工具有高精度,高效率、高性价比、无污染等众多优点，制作雕刻，直接带来丰厚的效益。
Through the computer random design graphics, dozens of output file format support, has the advantages of simple operation, stable performance, cutting machine with high precision, high efficiency, high price, no pollution, and many other advantages, carving delicate samples brought directly to the huge benefits.
应用材料Application materials:
各类触摸屏、导电膜、背光板、扩散膜、各类电子用绝缘材料、SMT罩板、PET、PVC、PC、PP、ABS、木材、纸张、橡胶、皮革、亚克力、有机板、树脂、布匹纤维及复合材料等非金属材料。
All kinds of touch screen, conductive film, backlight, diffusion film, all kinds of electronic with insulating materials, SMT cover board, pet, PVC, PC, PP, ABS, wood, paper, rubber, leather, acrylic, organic board, resin, cloth fiber and composite materials such as nonmetallic material.
相关参数/ Relevant Parameters
|
机型品牌： |
“禾力激光” |
|
激光器类型： |
封离式CO2激光器，水冷 |
|
激光能量控制： |
1～100%手动和软件控制 |
|
雕刻速度： |
0～2500mm/s |
|
操作系统： |
LASER STAR，USB连接口，LCD液晶显示面板，可脱机操作 |
|
重复定位精度： |
<0.01mm |
|
最小形成文字(mm)： |
汉字2*2；字母1*1 |
|
雕刻深度： |
0～25mm（视材料情况而定） |
|
分 辨 率： |
1200dpi |
|
电 源 |
AC220V±10% 50Hz |
|
工作温度： |
0~45℃ |
|
支持图形格式： |
BMP、JPEG、GIF、TIFF、PCX、PLT、AI、TGA、DXP等 |
|
辅助装置： |
吸风机与排风装置 |
|
工作湿度： |
5%～95%（无凝水） |
|
雕刻面积： |
1300mm*900mm |
|
激光功率： |
80W，100W，150W（可选配） |
|
外形尺寸： |
1800mm*1150mm*1060mm |
|
净 重： |
168kg |
|
总 功 率： |
<1350W |
|
Model brand： |
"He power laser" |
|
Type of laser： |
Sealed off CO2 laser, water cooling |
|
Laser energy control： |
1 ~ 100% manual and software control |
|
Engraving speed： |
0～2500mm/s |
|
operating system： |
STAR USB, LASER connection port, LCD liquid crystal display panel, can be offline operation |
|
Minimal form of text (mm)： |
Chinese character 2*2; letter 1*1 |
|
Engraving depth： |
0～25mm（Depending on the material conditions） |
|
Resolving power |
1200dpi |
|
Power Supply： |
10%±AC220V 50Hz |
|
Working temperature: |
0~45℃ |
|
Support graphics format: |
BMP, JPEG, GIF, TIFF, PCX, PLT, AI, TGA, DXP, etc. |
|
Auxiliary device: |
Suction fan and exhaust device |
|
Working humidity: |
5% ~ 95% (no condensate) |
|
Engraving area: |
1300mm×900mm |
|
Laser power: |
80W, 100W, 150W (optional) |
|
Net weight: |
168kg |
|
Total power: |
<1350W |
激光雕刻切割机特点Characteristics of laser engraving and cutting machine：
一、HL-960激光切割雕刻机，有效加工面积：900mm﹡600mm，可直接进料宽度900mm以內。
HL-960 laser cutting engraving machine, effective processing area: 900mm * 600mm, can be directly feed width 900mm.
二、 配置To configure：
1、 激 光 器：长度1.6米，最大发光功率80W，聚焦后切割功率75W。
Laser: length of 1.6 meters, maximum luminous power 80W, focused after cutting power 75W.
2、 导 轨：台湾原装直线导轨，台湾上银牌导轨。
Guide rail: Taiwan original linear guide rail, Taiwan on the silver guide rail, high precision.
3、 驱动系统：八线高速步进系统，专业驱动器驱动。
Drive system: eight line high speed stepper system, professional driver.
4、 硬件插补，切割各种图形。
Hardware interpolation: the only domestic, cutting a variety of graphics, high precision, fast response.
5、 冷却水箱：配置CW3000型冷水箱。
Cooling water tank: CW3000 type cold water tank.
6、 550W强力抽风机。
550W powerful exhaust fan.
7、 500W小气泵。
500W pump.
8、 进口聚焦镜。
imported focus lens.
9、 全套禾力软件激光切割雕刻系统。
A full set of cutting and engraving system for laser cutting.
三、技术支持及售后Technical support and after sales
1 、负责操作人员的使用和技术培训。
Responsible for the operator's use and technical training.
2 、负责设备的运输、安装和调试到位。
Responsible for transportation, installation and commissioning of the equipment.
4 、负责软件的免费升级服务。
Responsible for software free upgrade service.
5 、提供设备的终生上门维修服务。
To provide equipment for a lifetime home repair service.
6 、购机时激光管质保标准为规定时间内若速度（或公率）下降到国家标准，由我厂更换，超过此标准由客户自行购买；我厂负责上门安装。
Purchase laser tube standard warranty for within a specified period of time if the speed (or public rate dropped to the national standard, by our factory replacement, exceed the standard by the customer to buy their own, our factory is responsible for on-site installation.
