·       体积紧凑，重量轻，适用于2D或者3D的各种应用

·       大范围的简便调整功能和明确的焦点位置指示

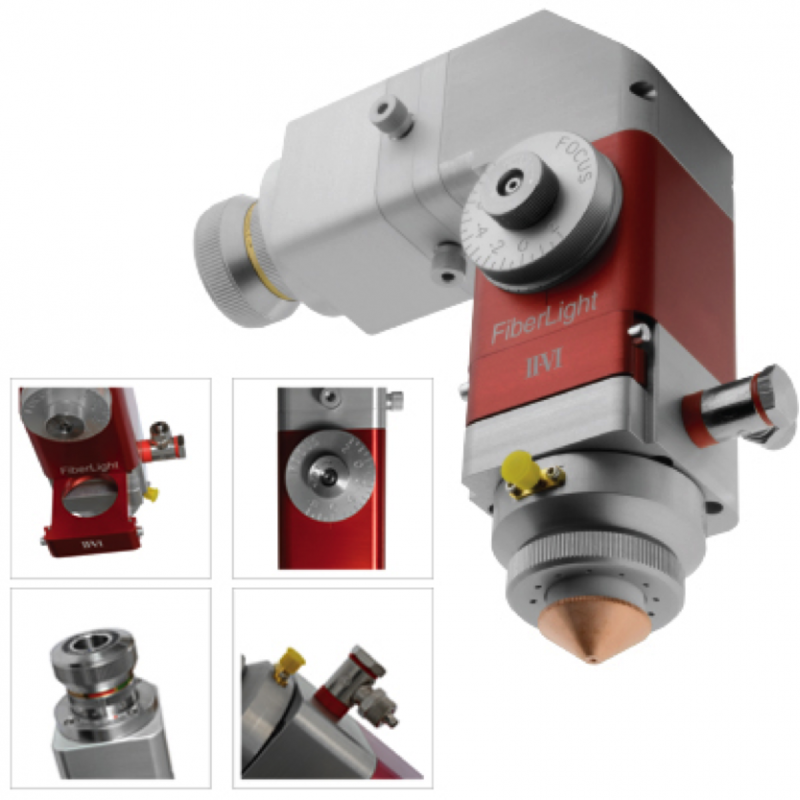

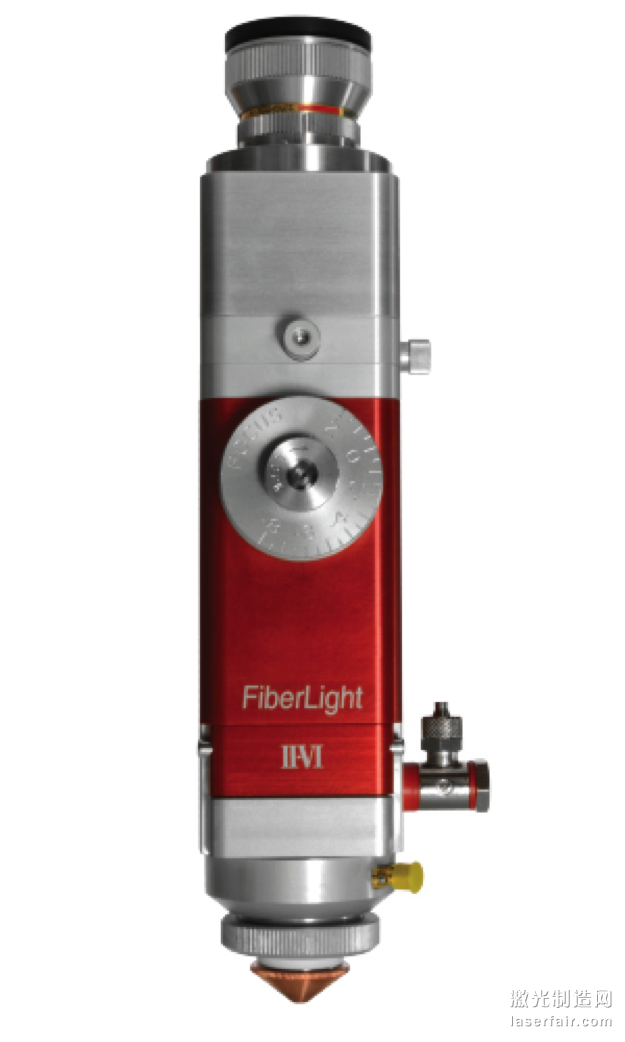

·       直线型和90度转角结构均可实现

·       10mm 焦点调节范围

·       模块化设计，客户可以有6种不同放大倍率的选择来获得不同光斑

·       客户安装板和水冷功能可选

·       保护窗快速更换

·       可选的高度传感器模块


光学指标

最大功率                                                               2kW

激光波长                                                               1.025 - 1.08μm

激光接头类型                                                        QBH, QCS, PIPA

准直镜焦距                                                            60mm, 72mm

聚焦镜焦距                                                             90mm, 120mm, 180mm

放大率*                                                                   1.25x, 1.5x, 1.67x, 2.0x, 2.5x, 3.0x

系统有效孔径                                                          19mm

透过率                                                                     >97%

中心调整                                                                 ±1mm in X & Y轴

聚焦镜保护窗                                                          抽屉式

* 可根据客户要求定制放大倍率

切割头喷嘴指标

喷嘴类型                                                    单孔

喷嘴孔直径                                                 1.0mm 到 3.0mm

焦点到喷嘴表面的调整范围                        +2.0mm 到 -8.0mm

最大辅助切割气体气压*                              25 bar

气体类型                                                     惰性和活性

* 标准Fiberlight的最大气压值                      20 bar

高度传感器*

电压要求                                                     24 V直流

输出– 线性范围                                           0 - 10V模拟信号

校准                                                             手动

响应时间                                                      <1ms

缆线长度                                                      2 Meters

高度调节范围                                               10mm

* 可客户定制
