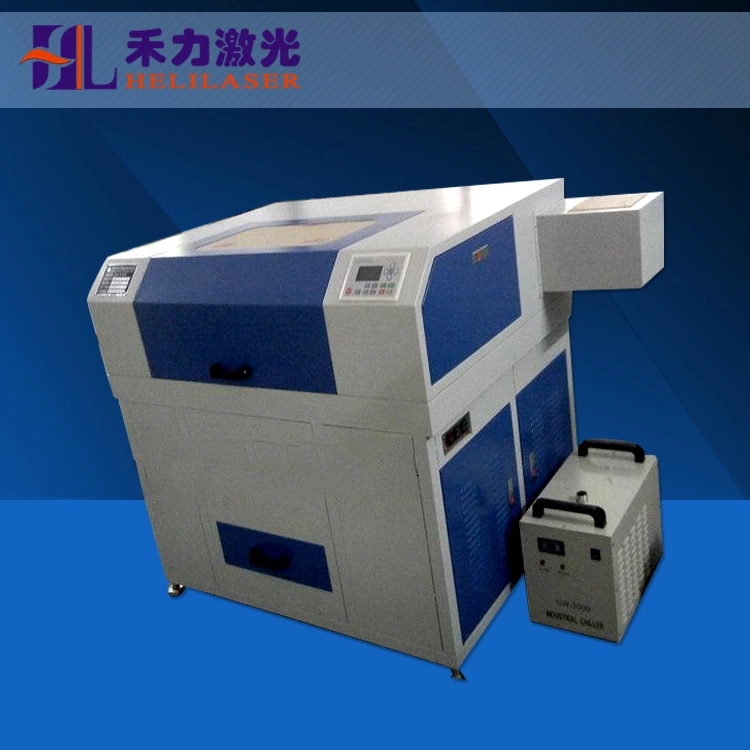

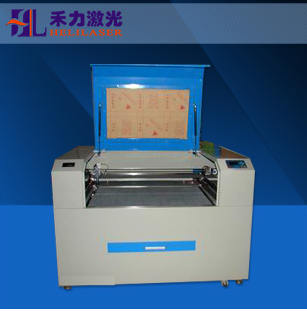

HL-T laser engraving and cutting machine
HL-640T/HL-0906T/HL-1280T/HL-1390T/HL-1490T/HL-1590T/HL-1680T/HL-1610T/HL-1995T/HL-2512T/1527T
机型简介Means ofindicators
禾力T系列激光机为禾力激光推出的新机型，机器配有至少两个激光头，距离随意移动，整机配有两套激光管，两激光电源，配有进口直线导轨，进口步进电机及驱动器，不锈铁锋窝底板，软件采用世界领先的自主研发控制软件，可实现双激光头功率的分别调整解决了以往功率不能调的问题，双头激光切割机，使工作效率成倍增长，本机广泛应用于服装、皮革、贴布绣花等行业。
Wo force T series laser machine for Heli laser launched new models, the machine is equipped with at least two laser head, moving away from random, the machine is equipped with two sets of laser tube, laser power supply, equipped with imported linear guide rail, imports of stepper motor and driver, stainless Zhifeng Waterloo floor. The software uses the world's leading independent research and development control software can realize double laser head power is adjusted separately solves the power is not the problem, double head laser cutting machine, work efficiency exponentially, this machine is widely used in clothing, leather, cloth embroidery and industry.具体特点Specific features
1、特殊的机械结构，激光头位置可随意调节，也可单头工作，操作方便
2、最新的禾力操作软件，可分别控制两个激光头的功率，可使两个激光头切割效果完全一样
3、大功率激光器，并配有全进口双光路反射系统,最大减少光的损耗，保证切割深度一致
4、主机配有128M的三星存贮器，可存多个加工文件。
5、双头工作，使得工作效率成倍增长。
6、配置进口双导轨，三相电机、三相驱动器，使设备运行更加稳定
7、采用独特的智能预测算法和改进型的控制算法，确保平衡、高效加工。
1、Special, mechanical structure ,laser location of the first free-conditioning ,but also the first single ,convenient operation
2、The lasest HE LI operating software ,which can control two of the first laser power ,will enable two laser cutting head is fully consistent results
3、High power lasers ,and a double –wide imports of optical reflector system ,the largest reduction of optical reflector system ,the largest reduction of optical loss, ensuring consistent cutting depth
4、Mainframe equippled with 128MB of Samsung memory, processing can be saved over documents
5、Double the work, so doubling the efficiency
6、Configuration import dual -three-phase motors,three-phase drive ,the more stable operating
equipment
7、using a unique intelligent prediction algorithm and improved control algorithms, to ensure a balanced and efficient processing.
详细配置Detailed configuration
A. 德国原装进口步进电机及驱动系统
a.Germany imported fully stepper motor and drive systems
B .HELILASER控制系统
b. HELILASER control system
C.采用国外进口直线导轨
c. Foreign imports in linear guideway
D.双传输方式：工业串口、USP串口
d. Dual transmission of USB 2.0
E.中英文液晶显示，人性化按键控制板
e. Chinese/English LCD, Humanity button panels
F.国产激光器（70/80）选配
f. Homemade laser(70/80)matching
G.光路系统采用新加坡全进口激光镜片
g. Optical system uses laser Singapore imports all lenses
H.高强度不锈铁蜂窝底板
h. High strength stainless Rail cellular integration backplane
I.机箱一体化结构
i. Chassis integration structure
J.支持U盘下载数据
j. Support U-download data
技术参数Technical-parameters
产品型号/Machine model HL-640T HL-960T HL-1080T HL-1280T
激光类型/Laser type 国产CO2激光器/hermetic and detached co2 laser tube
激光功率/Laser power 65w/80w/100w
雕刻面积/Engraving area 600mm*400mm 900*600mm 1000*800 mm 1200*800 mm
雕刻速度/Engraving speeds 0-2400mm/s
切割速度/Cutting speeds 0-3600mm/s
重复准确度/Repeating locating ±0.05mm
运动系统/Moving system CNC控制系统/CNC controlling units
冷却方式/Cooling mode 强制水冷及保护系统/water-cooling and protection system
工作电压/Working voltage 220±10% 50HZ
整机功率/Whole power 1250w
工作温度/Operating temperature 0℃-45℃
工作湿度/Operating humidity 5%-95%
控制软件/Controlling software 正版禾力激光软件/original Helilaser software
支持格式/Graphic format supported BMP PLT AI DXF DST
外形尺寸/Size 1300*1050*1050
整机重量/Gross weight 170kg/230 kg/270 kg/320 kg
适用材料Applicable Materials
本品适用于木制品、纸张、书包，皮革、布料、有机玻璃、环氧树脂、亚克力、毛料、塑料、橡胶、瓷砖、水晶、玉石、毛绒，竹制品等非金属材料。
This product is suitable for wood, paper, bags, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, plush, bamboo products and other non-metallic materials.
适用行业Applicable Industry
本类机型机器适用于服装绣花、书包，皮革制品、竹木制品、电子电器、模型、工艺品、广告、包装印刷、不干胶，纸制品等行业
This dinds of model apply to cloth. . leather . tabuectoy . electronics and electronic appliance
.model.crafts gift. ehe advertising .package printing.paper products industry.
