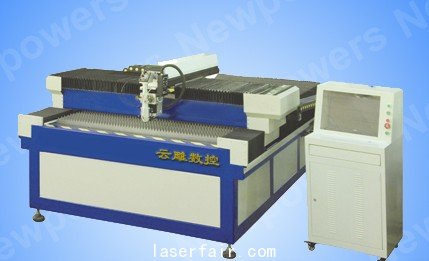

云雕YD-500-1325数控金属激光切割机
YD-500-1325 CNC metal laser cutting machine
设备优势/Equipment advantage：
1、精度高：适用于精密配件的切割和各种工艺字、画的精细切割。
2、速度快：是线切割的100倍以上。
3、热影响区小，不易变形。切缝平整、美观，无需后序处理。
4、性价比极高：价格只有同类性能CO2激光切割机的1/3，及同等功效数控冲床的2/5。
5、使用成本很低：仅为同类CO2激光激光切割机的1/8～1/10，每小时成本仅为18元左右，CO2激光切割机每小时成本为150～180元左右。
6、后续维护费用很低：仅为同类CO2激光切割机的1/10～1/15，及同等功效数控冲床的1/3～1/4。
7、性能稳定，保证持续生产。固体YAG激光器是激光领域最稳定最成熟产品之一。
8、和数控冲床比较，YAG激光切割机具有以下优点：
   （1）能完成各种复杂结构的加工，只要能在电脑上画出任何图像，该机都能完成加工。
   （2）不需要开模，只在电脑上将图作出，产品马上就可以出来，即能快速开发新产品，又能节约成本。
   （3）YAG切割机有自动跟踪系统，所以即能完成平面切割，也能完成各种高低不平的曲面切割。
   （4）复杂的工艺要求数控冲床难以完成，激光切割都能做到。
   （5）表面非常光滑，产品档次很高，数控冲床难以做到。
   （6）成型的箱体（厚0.5米以内）需增加孔槽等处理，数控冲床无法处理，YAG数控金属激光切割机能解决。
1、High precision: applicable for cutting precision parts, calligraphy and painting.
2、Fast speed: its speed is 100 times more than line cutting.
3、Small heat-affected zone, not easy to metamorphose, cutting edge is smooth and beautiful, no need to do after-process.
4、High performance: Its price is only 1/3 of similar performance CO2 laser cutting machines and 2/5 of CNC punch machines.
5、Low using cost: its using cost is only 1/8 to 1/10 of similar performance CO2 laser cutting machines about RMB18 for each hour, however the using cost of the CO2 laser cutting machines is about RMB150-180 each hour.
6、Low maintenance cost: only 1/10 to 1/15 of similar CO2 laser cutting machines and 1/3 to 1/4 of similar performance cnc punch machines.
7、Steady performance can ensure the continual production. Solid YAG laser equipment is one of the most steady and mellow products in the laser field.
8、Compare to CNC router, YAG laser cutting machine have following advantage.
（1）Can process various complex structures, any image drawing by computer, can be processed by this machine
（2）No need to open mode. Only need design the file from computer, then the product can come out immediately. Can quickly develop new products，and save the cost.
（3）YAG cutting machine with automatic tracking system, is able to complete the flat cut and
avariety of uneven surfaces cut#p#分页标题#e#
（4）Those complex technical requirements can not completed by the CNC machine, this YAG laser cutting machine can do it well.
（5）Can produce the products with smooth surface in high grade. But CNC machine is hard to achieve.
（6）Molding body (less than 0.5 m thick) need the hole trench processing. CNC machine can not handle it, but YAG laser cutting machine is workable.
技术参数/Specification：

设备型号	Model number	YD-500-1325
加工幅面	working area	2500㎜×1300㎜
外形尺寸	machine size	3，645×2，015×1,300mm
最大切割厚度	Max.cutting thickness	6㎜(碳钢/carbon steel）
最大输出功率	Max.output power	620W
激光波长	laser wavelength	1064nm
脉冲频率	Pulse Frequency	1--300HZ
最小线宽	Minimum line width	0.15mm
电力配置	Voltage	380V/50HZ/100A
X、Y、Z轴几何定位精度	X,Y,Z axis geometry position accuracy	≤±0.08㎜/1000㎜
X、Y、Z轴重复定位精度	X,Y,Z axis Resetting position accuracy	≤±0.04㎜
机床重量	Whole machine Weight	3800㎏
冷却方式	Cooling mode	7P水冷/7Pwater cooling system
最大切割速度	Max.cutting speed	35㎜/s

适用行业/Appliable industries：#p#分页标题#e#
广泛应用于广告标牌制作、钣金结构、高低压电器柜制作、纺织机械零件、五金、金属工艺品、厨具、汽车、机械、电梯、电器零件、弹簧片、地铁零件等行业。
Widely used in the line of advertising board, Sheetmetal structure, high and low Voltage elictric cupboard industry, spare parts of the textile machines, hardware, metal handicraft article, kitchen wares, cars, machines, elevators, spare parts of the elictric devices, spring pieces, spare parts of the subway and so on.
适用材料/Appliable material：
    不锈钢、碳钢、合金钢、弹簧钢、铝合金、铜板、铝板、金、银、钛等金属板材及管材。
Stainless steel, carbon steel, alloy steel, spring steel, Aluminum alloy, copper plate, Aluminum plate, gold, silver, Titanium, other metal plates and metal pipes

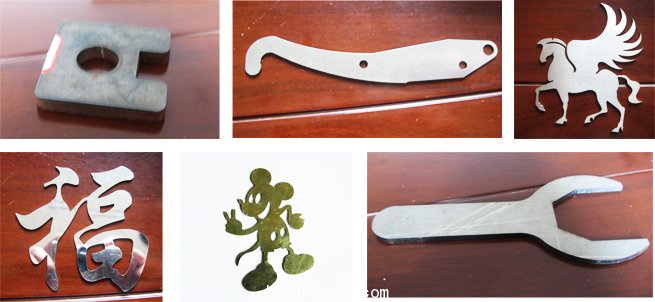

 激光切割样品展示：
