平顶光束整形器

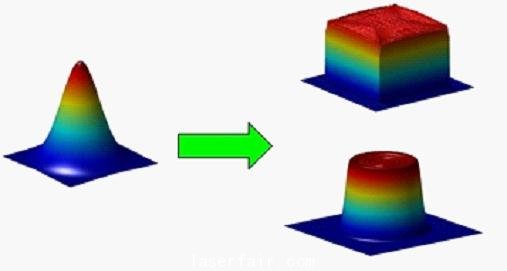

通常激光器发出的激光束的空间强度分布呈高斯分布，即高斯光束，在高功率固体激光器和放大器的应用中，高斯光束的强度过于集中在中心部分，易导致激光晶体和光学元件的损伤。通过平顶光束整形器可以将高斯光束整形为光强均匀分布的平顶光束。平顶光束把强度分散在整个光斑尺寸中，可以大大提高高功率激光的损伤阈值。此外，平顶光束整形器还广泛应用于激光的医学临床应用、激光打孔、刻槽、激光材料加工、光学信息处理、存储和记录等对激光光束均匀性有较高要求的领域中。

特点：

l 平顶能量分布均匀平滑

l 高整形效率

l 整形后边缘清晰且亮度均匀

l 高损伤阈值

l 多种可选的整形后图案

应用：

l 自由电子激光

l 激光全息

l 材料微加工

l 信息处理，打印

l 激光淬火，焊接，切割，调阻

l 激光辐照

l 超快激光加工

l 流动细胞记数

主要参数：#p#分页标题#e#

型号	波长(nm)	尺寸(mm)	束腰1/E2 (mm)	工作距离(mm)	图形尺寸 1/E2	图形形状	材料	膜层
TH-003-A-Y-A	10600	12.7	3.7	42.5	300x100 um	Line	ZnSe	AR V-coating
TH-006-A-Y-A	10600	38.1	25	125.4	15x1 mm	Rectangular	ZnSe	AR V-coating
TH-226-A-Y-A	10600	20	4	100	3x3mm	Square	ZnSe	AR V-coating
TH-233-A-Y-A	10600	27.94	12	63.5	0.25x2.5mm	Rectangular	ZnSe	AR V-coating
TH-234-A-Y-A	10600	27.94	14	95	250um	Round	ZnSe	AR V-coating
TH-205-A-Y-A	10600	25.4	4	100	1.5mm	Round	ZnSe	AR V-coating
TH-219-A-Y-A	10600	27.94	12	63.5	0.25x1.5mm	Rectangular	ZnSe	AR V-coating
ST-211-A-Y-A	10600	27.94	11	38	125x200um	Rectangular	ZnSe	AR V-coating
TH-202-A-Y-A	10600	20	14.5	82.5	230 um	Round	ZnSe	AR V-coating
TH-009-A-Y-A	10600	27.94	10	62.9	436x436 um	Square	ZnSe	AR V-coating
ST-201-A-Y-A	10600	38.1	16.5	187.5	360um	Round	ZnSe	AR V-coating
TH-208-A-Y-A	10600	27.94	13	150	5 mm	line	ZnSe	AR V-coating
TH-004-A-Y-A	10600	27.94	12	63.5	390 um	Round	ZnSe	AR V-coating
TH-002-A-Y-A	10600	27.94	12	Infinity	1.375x1.375 deg	Square	ZnSe	AR V-coating
TH-011-A-Y-A	10600	38.1	25	250	3 mm	Round	ZnSe	AR V-coating
TH-001-A-Y-A	10600	38.1	25	250	3 mm	Round	ZnSe	AR V-coating
TH-005-C-Y-A	9250	27.94	12	63.5	350 um	Round	ZnSe	AR V-coating
TH-008-C-Y-A	9250	27.94	10	62.4	405x405 um	Square	ZnSe	AR V-coating
ST-200-C-Y-A	9250	27.94	12	63	260x260um	Square	ZnSe	AR V-coating
TH-007-C-Y-A	9250	38.1	25	121	14.2x1.7 mm	Rectangular	ZnSe	AR V-coating
TH-203-D-Y-A	2940	11	4	80	200 um	Round	ZnSe	AR V-coating
TH-012-H-Y-A	1319	20	7	43.2	170 um	Round	Fused Silica	AR V-coating
ST-208-X-Y-A	1070	30	14	75	500x500um	Square	Fused Silica	AR V-coating
TH-232-X-Y-A	1070	38.1	12	150	300x300um	Square	Fused Silica	AR V-coating
TH-224-X-Y-A	1070	38.1	14	75.76	1x1mm	Square	Fused Silica	AR V-coating
ST-212-I-Y-A	1064	20	7	Infinity	1x1mRad	Square	Fused Silica	AR V-coating
TH-014-I-Y-A	1064	20	7	42.52	190 um	Round	Fused Silica	AR V-coating
TH-102-I-N-A	1064	25.4	6	100	150 um	Round	Fused Silica	No-coating
TH-102-I-Y-A	1064	25.4	6	100	150 um	Round	Fused Silica	AR V-coating
TH-019-I-Y-A	1064	25.4	3	100	210x210 um	Square	Fused Silica	AR V-coating
TH-101-I-Y-A	1064	25.4	3	100	150 um	Round	Fused Silica	AR V-coating
TH-103-I-Y-A	1064	25.4	9	1000	10x10 mm	Square	Fused Silica	AR V-coating
TH-015-I-Y-A	1064	25.4	5.1	infinity	0.83 deg	Line	Fused Silica	AR V-coating
TH-013-I-Y-A	1064	25.4	7	infinity	1x1 deg	Square	Fused Silica	AR V-coating
TH-215-I-Y-A	1064	25.4	6	infinity	1mRad	Round	Fused Silica	AR V-coating
TH-018-I-Y-A	1064	38.1	13	20000	635x635 mm	Square	Fused Silica	AR V-coating
TH-017-I-Y-A	1064	50	39	20000	635x5.3 mm	Rectangular	Fused Silica	AR V-coating
ST-205-I-Y-A	1064	25.4	7	106	210x210um	Square	Fused Silica	AR V-coating
ST-203-I-Y-A	1064	25.4	6	52	50x50 um	Square	Fused Silica	AR V-coating
TH-231-I-Y-A	1064	12.7	5	100	0.2x0.6mm	Rectangular	Fused Silica	AR V-coating
TH-016-K-Y-A	980	25.4	7	infinity	0.94x0.94 deg	Square	Fused Silica	AR V-coating
TH-033-X-Y-A	800	25.4	6	200.29	3 mm	Round	Fused Silica	AR V-coating
TH-033-X-Y-C	800	25.4	6	200.29	3 mm	Round	Fused Silica	AR V-coating
TH-222-Q-Y-A	532	12.7	2.9	40	200um	Line	Fused Silica	AR V-coating
TH-228-Q-Y-A	532	11	3	Infinity	5.017mRad	Round	Fused Silica	AR V-coating
ST-207-Q-Y-A	532	25.4	10	Infinity	0.306mRad	Round	Fused Silica	AR V-coating
TH-032-Q-Y-A	532	25.4	10.9	200	2 mm @FWHM	Round	Fused Silica	AR V-coating
ST-206-Q-Y-A	532	25.4	10	Infinity	1.37mRad	Line	Fused Silica	AR V-coating
ST-204-Q-Y-A	532	25.4	6	52	30 x 30 um	Square	Fused Silica	AR V-coating
TH-036-Q-Y-A	532	25.4	3.5	99.5	200x200 um	Square	Fused Silica	AR V-coating
TH-034-Q-Y-A	532	25.4	2.5	99.5	100x100 um	Square	Fused Silica	AR V-coating
TH-035-Q-Y-A	532	25.4	2.5	99.5	90 um	Round	Fused Silica	AR V-coating
TH-031-Q-Y-A	532	25.4	5	52.4	100 um	Round	Fused Silica	AR V-coating
TH-204-Q-Y-A	532	25.4	3.5	105	200x200um	Square	Fused Silica	AR V-coating
TH-216-Q-Y-A	532	25.4	12	720	10x10mm	Square	Fused Silica	AR V-coating
ST-209-Q-Y-A	532	12.7	2	104.76	150x200um	Rectangular	Fused Silica	AR V-coating
TH-217-U-Y-A	355	12.7	2	100	100x100um	Square	Fused Silica	AR V-coating
ST-202-U-Y-A	355	25.4	14	50	50x6 um	Rectangular	Fused Silica	AR V-coating
TH-209-U-Y-A	355	25.4	9x6	200	100 um	Round	Fused Silica	AR V-coating
TH-207-U-Y-A	355	25.4	3.5	99.35	200x200 um	Square	Fused Silica	AR V-coating
TH-042-U-Y-A	355	25.4	2.5	50	50 um	Round	Fused Silica	AR V-coating
TH-227-U-Y-A	355	11	3	Infinity	4.44mRad	Round	Fused Silica	AR V-coating
TH-235-U-Y-A	355	27.94	12	700	10mm	Line	Fused Silica	AR V-coating
TH-043-U-Y-A	355	20	8	49.8	15 um	Round	Fused Silica	AR V-coating
TH-046-U-Y-A	355	12.7	.5	95	80x80 um	Square	Fused Silica	AR V-coating
TH-045-U-Y-A	355	12.7	1.65	94	170x170 um	Square	Fused Silica	AR V-coating
TH-044-V-Y-A	337	20	8	49.395	20 um	Round	Fused Silica	AR V-coating
TH-051-W-Y-A	266	25.4	5	42	15 um	Round	Fused Silica	AR V-coating

#p#分页标题#e#

上面的光束整形器是已有并且在市场上大量使用，也可根据客户的要求订制，如有具体要求，请联系我们。HOLO/OR拥有在无尘室中制造衍射光学元件的完善设备，包括光学设计、光罩制作、干式电浆蚀刻、光学微影蚀刻术、钻石切削技术、测试与品质保证等。凭借HOLOOR公司多年的产品设计经验，很多的特殊产品也并不需要额外的定制费用。

衍射元件的常规指标

波长UV-VIS-IR

材料：硒化锌、蓝宝石、硅、石英等

损伤阈值：大于3KW

镀膜：抗反射或高反射率镀膜

形状：平面窗口，包括圆形及方形或镜头等多种

效率：大于98%

HOLOOR公司曾经给其他客户做过的一些光束设计如下图所示：
